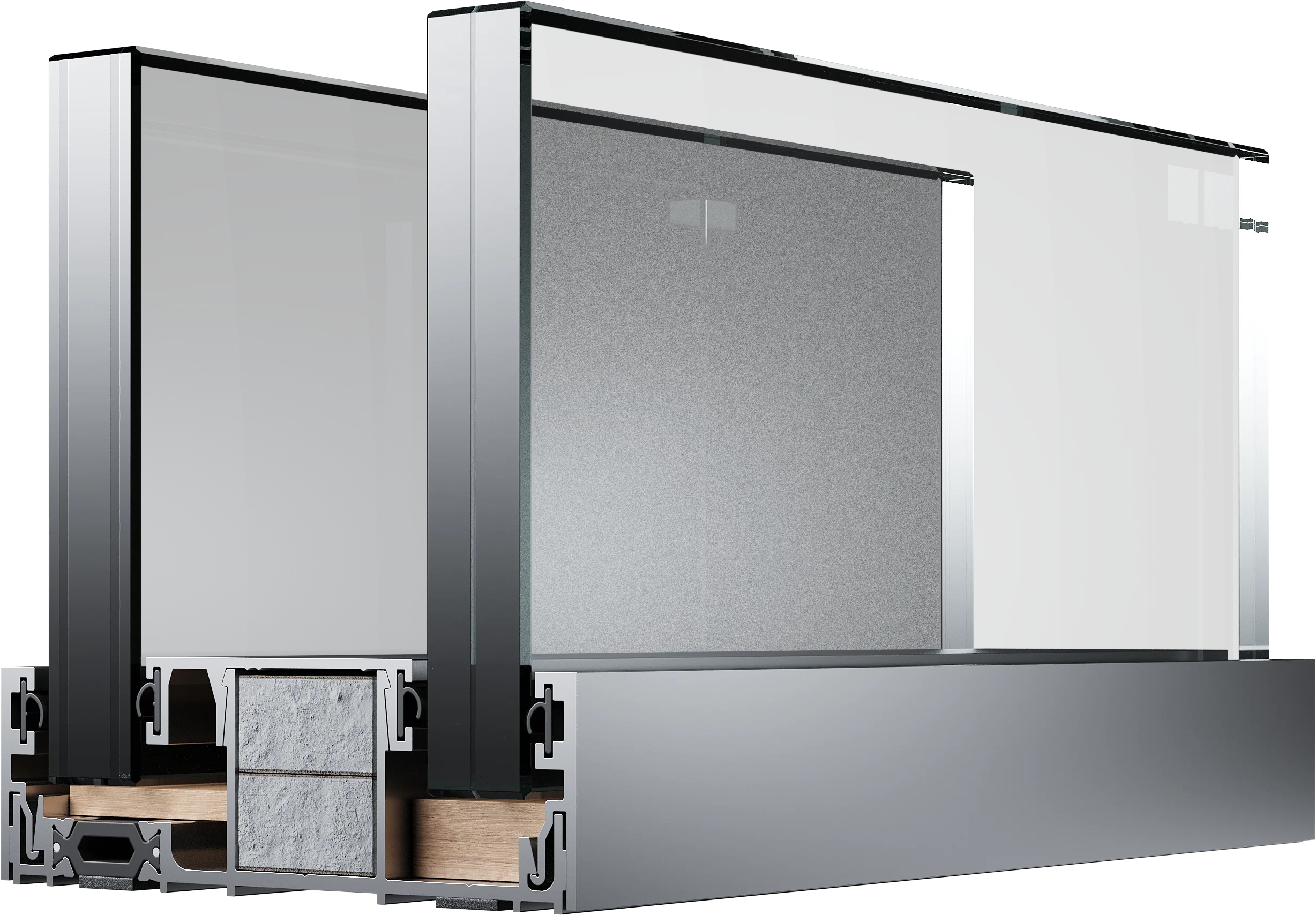

Ultra Silence FS system

Technical data

  • Double-glazed system
  • Structural profiles 30 mm high and 100 mm deep in any RAL colour
  • Maximum height 3200 mm
  • Fire resistance EI30/EW30 and EI60/EW60
  • Aesthetic and minimalist design
  • Concealed gaskets
  • National Technical Assessment: ITB-KOT-2019/0978
  • European Technical Assessment: ETA - 24/699

Ultra Silence FS system

Types of glazing
Glazing AGC Pyrobel 16VL + VSG 55.1AGC Pyrobel 16VL + VSG 66.2SiAGC Pyrobel 16VL + VSG 88.2Si
Sound insulation 44 dB48 dB50 dB
Glazing AGC Pyrobel P25VL + VSG 55.1AGC Pyrobel P25VL + VSG 66.2SiVetrotech CS60 + VSG 55.1Vetrotech CS60 + VSG 66.2Si
Sound insulation 47 dB50 dB46 dB48 dB
http://przeźroczyste%20tło

Ultra Silence FS system

ULTRA SILENCE FS is a double-glazed fire-resistant system with an elegant design. With a height of 30 mm and a width of 100 mm, the profiles of this system provide stability while being visually light. ULTRA SILENCE FS also offers excellent acoustic performance of up to 50 dB. Walls in this system improve working and resting conditions by muffling sounds and soundproofing the space.

With the EI30/EW30 and EI60/EW60 fire resistance, the ULTRA SILENCE FS system ensures safety, while concealed gaskets improve the aesthetics of the profiles. The system combines precision craftsmanship, modern design and stability to create a reliable solution for offices and commercial spaces.

  • http://ikona%20głośności
    Rw up to 50 dB
  • http://System%20Pure%20AS
    Modern design
  • http://System%20Pure%20FS
    Fire resistance EI30/EW30 and EI60/EW60
