Standard 78 Doors
Acoustic insulation: Rw 40 - 42 dB
- Single or double leaf doors
- Maximum leaf height 3,000 mm
- Glass thickness 6 ÷ 12 mm
- Door frame profiles painted in any RAL colour
- Fittings in silver anodised finish as standard, can be painted in any RAL colour
- Transparent/frosted/tinted/smoked/LCD glass
- Optional fittings: Access control (electric strike, magnetic strike), external door closer
- Concealed hinge
- Option of installing blinds
- Option of installing sidelights and fanlights above the door frame

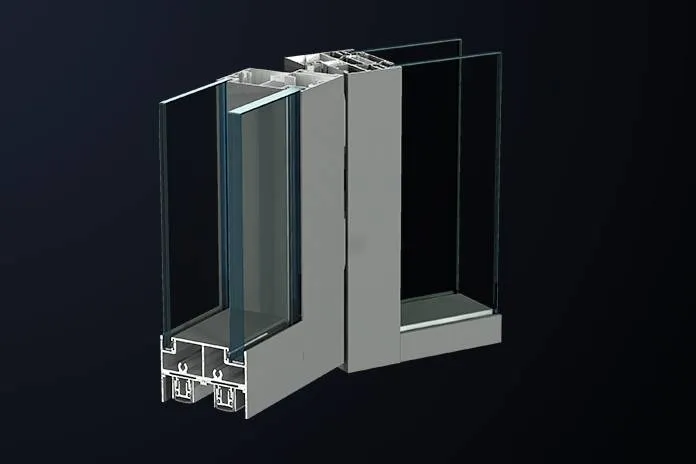

Double-glazed STANDARD 78 doors with aluminium frame with two retractable bottom seals. There is an option to install a door closer and access control system. Aluminium frame 78 mm, 100 mm thick. STANDARD 78 doors are facing both sides of the SILENCE system.
The door can be installed in any assembly opening, also in a glass wall system.
Specification
| Glazing | Acoustic insulation Rw |
|---|---|
| VSG 33.1 + 55.1 (two retractable bottom seals) | Rw = 40 dB |
| VSG 33.2 + 66.2Si (two retractable bottom seals) | Rw = 42 dB |
| Glazing (double leaf) |
Acoustic insulation Rw |
|---|---|
| VSG 33.2 + 66.2Si (two retractable bottom seals) | Rw = 42 dB |
