Pure AS system

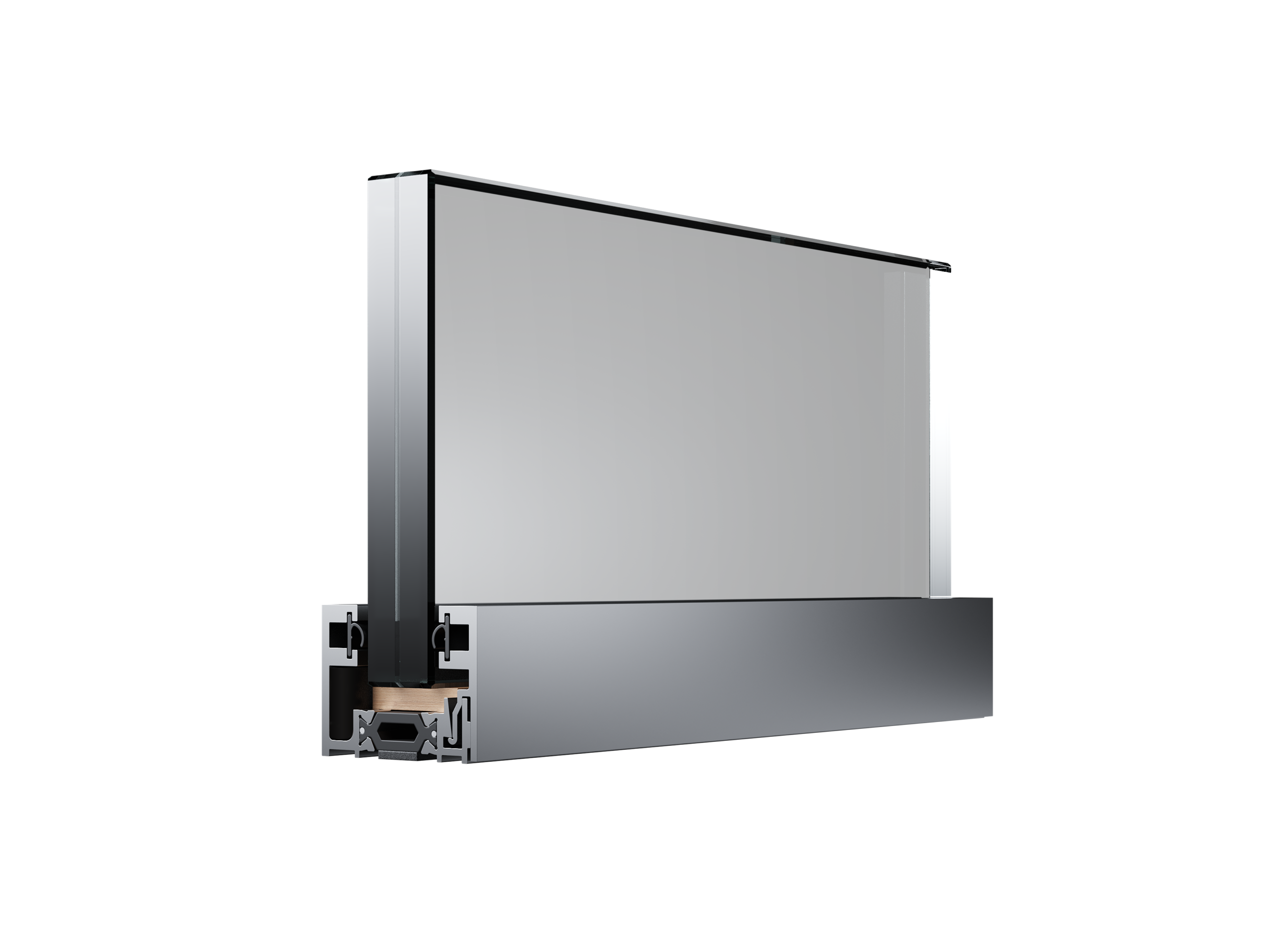

pure as
pure as

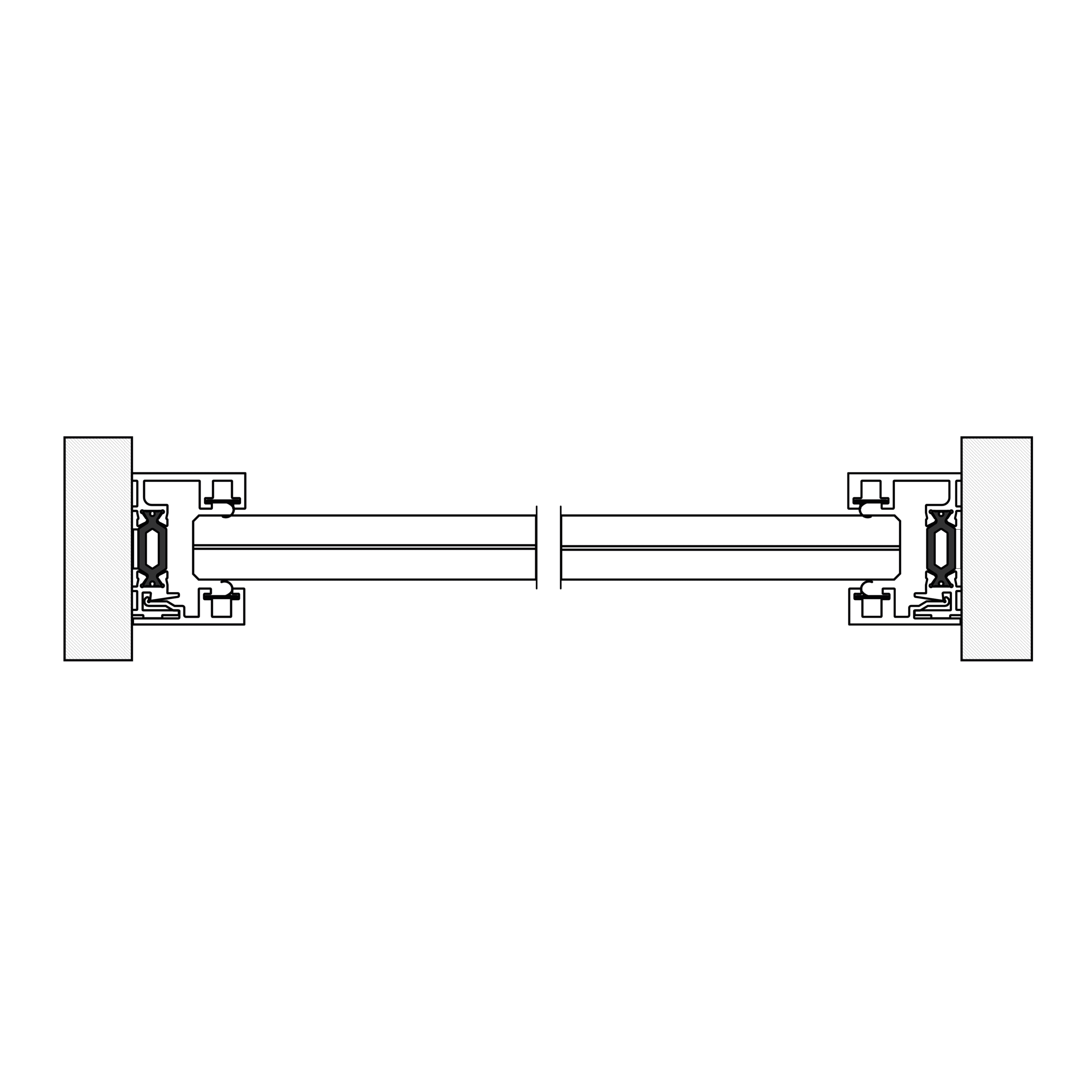

rysunek techniczny
rysunek techniczny

Technical data

  • Single-glazed system
  • Structural profiles 30 mm high and 40 mm deep in any RAL colour
  • Maximum height 3200 mm
  • Can be installed as a partition on a mezzanine floor
  • Possibility of adding stick-on muntins
  • National Technical Assessment: ITB-KOT-2019/0978

Pure AS System

Types of glazing
Glazing VSG 88.2Si+ Acoustic insert
Sound insulation 41 dB
http://przeźroczyste%20tło

Pure AS System

PURE AS is a single-glazed partition wall system that provides sound insulation of Rw 41 dB. Profiles with a height of 30 mm and a depth of 40 mm guarantee a stable structure, and the partition wall in this system can reach a height of up to 3200 mm and act as a partition on the mezzanine floor. The aluminium profiles are powder-coated in any RAL colour, allowing them to perfectly match their appearance to any interior.

  • http://ikona%20głośności
    Rw up to 41 dB
  • http://System%20Pure%20Loft
    Stable construction
  • http://System%20Pure%20AS
    Modern design

Download

http://karta%20produktowa
Product card
Download file Print file
http://szklane%20drzwi%20i%20ściany

Are you interested in the Vitrintec glass wall system? We would be happy to advise you!

Contact our team if you need more information about aluminium and glass systems, technical support or an offer for cooperation. We will answer any questions and help you select a solution tailored to your project.
